CTZ T-SLOTTING |

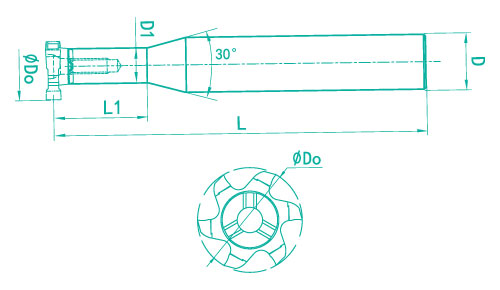

| Image |
DESCRIPTION |
Do |
D |
D1 |
L1 |
L |
|
|
CTZB-22-12J11 |
2170 |
12 |
1130 |
30 |
110 |
| CTZB-22-16K11 |
2170 |
16 |
1160 |
30 |
125 |
| CTZB-22-20L11 |
2170 |
20 |
1160 |
35 |
140 |
| CTZB-22-12J11-CAR |
2170 |
12 |
1130 |
30 |
110 |
| CTZB-22-16K11-CAR |
2170 |
16 |
1160 |
30 |
125 |
| CTZB-22-20L11-CAR |
2170 |
20 |
1160 |
35 |
140 |
| CTZB-28-16K14 |
2770 |
16 |
1430 |
38 |
125 |
| CTZB-28-20M14 |
2770 |
20 |
1430 |
38 |
150 |
| CTZB-28-25P14 |
2770 |
25 |
1430 |
38 |
170 |
| CTZB-28-16K14-CAR |
2770 |
16 |
1430 |
38 |
125 |
| CTZB-28-20M14-CAR |
2770 |
20 |
1430 |
38 |
150 |
| CTZB-28-25P14-CAR |
2770 |
25 |
1430 |
38 |
170 |
| CTZB-32-16K14 |
3170 |
16 |
1430 |
38 |
125 |
| CTZB-32-20M14 |
3170 |
20 |
1430 |
38 |
150 |
| CTZB-32-25P14 |
3170 |
25 |
1430 |
38 |
170 |
| CTZB-32-16K14-CAR |
3170 |
16 |
1430 |
38 |
125 |
| CTZB-32-20M14-CAR |
3170 |
20 |
1430 |
38 |
150 |
| CTZB-32-25P14-CAR |
3170 |
25 |
1430 |
38 |
170 |
