SP◊◊ U-DRILL 3D |

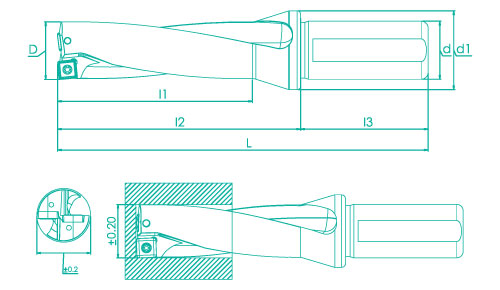

| Image |
SCREW TYPE |
D |
d.1 |
d1 |
L |
l1 |
l2 |
l3 |
|
|
D 12.50X3D SP.. 050204 |
12.50 |
20 |
25 |
107 |
370 |
57 |
50 |
| D 13.00X3D SP.. 050204 |
13.00 |
20 |
25 |
107 |
390 |
57 |
50 |
| D 13.50X3D SP.. 050204 |
13.50 |
20 |
25 |
110 |
405 |
60 |
50 |
| D 14.00X3D SP.. 050204 |
14.00 |
20 |
25 |
110 |
420 |
60 |
50 |
| D 14.50X3D SP.. 050204 |
14.50 |
20 |
25 |
113 |
435 |
63 |
50 |
| D 15.00X3D SP.. 050204 |
15.00 |
20 |
25 |
113 |
450 |
63 |
50 |
| D 15.50X3D SP.. 060204 |
15.50 |
20 |
25 |
118 |
465 |
68 |
50 |
| D 16.00X3D SP.. 060204 |
16.00 |
25 |
34 |
124 |
480 |
68 |
56 |
| D 16.50X3D SP.. 060204 |
16.50 |
25 |
34 |
127 |
495 |
71 |
56 |
| D 17.00X3D SP.. 060204 |
17.00 |
25 |
34 |
127 |
510 |
71 |
56 |
| D 17.50X3D SP.. 060204 |
17.50 |
25 |
34 |
131 |
525 |
75 |
56 |
| D 18.00X3D SP.. 060204 |
18.00 |
25 |
34 |
131 |
540 |
75 |
56 |
| D 18.50X3D SP.. 060204 |
18.50 |
25 |
34 |
134 |
555 |
78 |
56 |
| D 19.00X3D SP.. 060204 |
19.00 |
25 |
34 |
134 |
570 |
78 |
56 |
| D 19.50X3D SP.. 060204 |
19.50 |
25 |
34 |
139 |
585 |
83 |
56 |
| D 20.00X3D SP.. 060204 |
20.00 |
25 |
34 |
139 |
600 |
83 |
56 |
| D 20.50X3D SP.. 060204 |
20.50 |
25 |
34 |
142 |
615 |
88 |
56 |
| D 21.00X3D SP.. 060204 |
21.00 |
25 |
34 |
142 |
630 |
88 |
56 |
| D 21.50X3D SP.. 060204 |
21.50 |
25 |
34 |
145 |
645 |
89 |
56 |
| D 22.00X3D SP.. 07T308 |
22.00 |
25 |
34 |
145 |
660 |
89 |
56 |
| D 22.50X3D SP.. 07T308 |
22.50 |
25 |
34 |
150 |
675 |
94 |
56 |
| D 23.00X3D SP.. 07T308 |
23.00 |
25 |
34 |
150 |
690 |
94 |
56 |
| D 23.50X3D SP.. 07T308 |
23.50 |
25 |
34 |
154 |
705 |
98 |
56 |
| D 24.00X3D SP.. 07T308 |
24.00 |
25 |
34 |
154 |
720 |
98 |
56 |
| D 24.50X3D SP.. 07T308 |
24.50 |
25 |
34 |
158 |
735 |
102 |
56 |
| D 25.00X3D SP.. 07T308 |
25.00 |
25 |
34 |
158 |
750 |
102 |
56 |
| D 25.50X3D SP.. 07T308 |
25.50 |
25 |
34 |
161 |
765 |
105 |
56 |
| D 26.00X3D SP.. 07T308 |
26.00 |
25 |
34 |
161 |
780 |
105 |
56 |
| D 26.50X3D SP.. 07T308 |
26.50 |
25 |
34 |
164 |
795 |
108 |
56 |
| D 27.00X3D SP.. 07T308 |
27.00 |
25 |
34 |
164 |
810 |
108 |
56 |
| D 27.50X3D SP.. 07T308 |
27.50 |
25 |
34 |
168 |
825 |
112 |
56 |
| D 28.00X3D SP.. 090408 |
28.00 |
25 |
34 |
168 |
84.00 |
112 |
56 |
| D 28.50X3D SP.. 090408 |
28.50 |
25 |
34 |
171 |
85.50 |
115 |
56 |
| D 29.00X3D SP.. 090408 |
29.00 |
25 |
34 |
171 |
87.00 |
115 |
56 |
| D 29.50X3D SP.. 090408 |
29.50 |
25 |
34 |
177 |
88.50 |
111 |
56 |
| D 30.00X3D SP.. 090408 |
30.00 |
32 |
44 |
171 |
90.00 |
111 |
60 |
| D 31.00X3D SP.. 090408 |
31.00 |
32 |
44 |
175 |
93.00 |
115 |
60 |
| D 32.00X3D SP.. 090408 |
32.00 |
32 |
44 |
178 |
96.00 |
118 |
60 |
| D 33.00X3D SP.. 090408 |
33.00 |
32 |
44 |
182 |
99.00 |
122 |
60 |
| D 34.00X3D SP.. 110408 |
34.00 |
32 |
44 |
185 |
102 |
125 |
60 |
| D 35.00X3D SP.. 110408 |
35.00 |
32 |
44 |
189 |
105 |
129 |
60 |
| D 36.00X3D SP.. 110408 |
36.00 |
32 |
44 |
193 |
108 |
133 |
60 |
| D 37.00X3D SP.. 110408 |
37.00 |
32 |
44 |
197 |
111 |
136 |
60 |
| D 38.00X3D SP.. 110408 |
38.00 |
32 |
44 |
201 |
114 |
141 |
60 |
| D 39.00X3D SP.. 110408 |
39.00 |
32 |
44 |
204 |
117 |
144 |
60 |
| D 40.00X3D SP.. 110408 |
40.00 |
32 |
44 |
208 |
120 |
148 |
60 |
| D 41.00X3D SP.. 110408 |
41.00 |
32 |
44 |
212 |
123 |
152 |
60 |
| D 42.00X3D SP.. 140512 |
42.00 |
32 |
44 |
215 |
126 |
155 |
60 |
| D 43.00X3D SP.. 140512 |
43.00 |
32 |
44 |
219 |
129 |
158 |
60 |
| D 44.00X3D SP.. 140512 |
44.00 |
32 |
44 |
222 |
132 |
162 |
60 |
| D 45.00X3D SP.. 140512 |
45.00 |
40 |
60 |
237 |
135 |
167 |
70 |
| D 46.00X3D SP.. 140512 |
46.00 |
40 |
60 |
241 |
138 |
171 |
70 |
| D 47.00X3D SP.. 140512 |
47.00 |
40 |
60 |
244 |
141 |
174 |
70 |
| D 48.00X3D SP.. 140512 |
48.00 |
40 |
60 |
248 |
144 |
178 |
70 |
| D 49.00X3D SP.. 140512 |
49.00 |
40 |
60 |
251 |
147 |
181 |
70 |
| D 50.00X3D SP.. 140512 |
50.00 |
40 |
60 |
255 |
150 |
185 |
70 |
| D 51.00X3D SP.. 140512 |
51.00 |
40 |
60 |
258 |
153 |
188 |
70 |
| D 52.00X3D SP.. 140512 |
52.00 |
40 |
60 |
261 |
156 |
191 |
70 |
| D 53.00X3D SP.. 140512 |
53.00 |
40 |
60 |
264 |
159 |
194 |
70 |
| D 54.00X3D SP.. 140512 |
54.00 |
40 |
60 |
267 |
162 |
197 |
70 |
